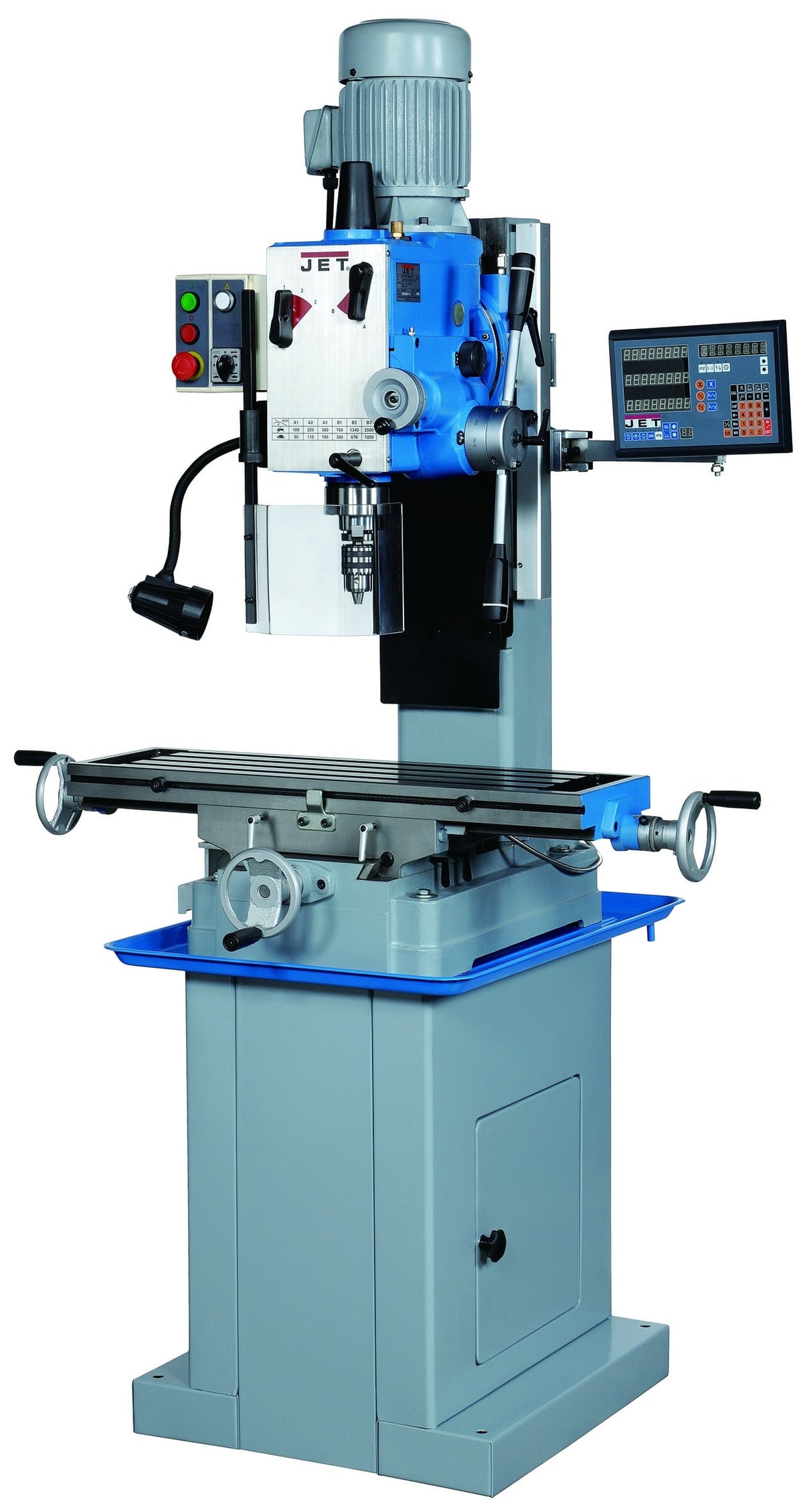

Promac JMD-45PFD-T Vertical Mill Drill
Model JMD-45PFD-T
Selling price includes UK VAT where applicable. Any ex. VAT figure shown is for comparison; final taxes and shipping are confirmed at checkout.
Supplier stock listed
Supplier stock is updated from periodic reports, not a live feed. Availability and delivery are confirmed before dispatch.
Description
Automatic spindle lowering, Equipped with monitoring function for 3 axes (X, Y, Z) with glass scale, 2 gear motor, CW/CCW rotation of the spindle enables threads to be realized, Automatic downward movement of the spindle, Compound table with parallel T slots (16mm), Tilting head, tiltable by 30° to the right and 90° to the left, With MT2/B16 adapter, M12 draw bar, 1–13-mm auto-clamping chuck, chuck guard and emergency stop switch.
Shown with optional stand - Part Number 350045-G
Delivery and support
Delivery is calculated from the combined actual shipping weight and destination. Carrier dimensions are used only where the selected service requires them. Very heavy, specialist-handling or unusual-access orders may need a confirmed freight quotation before payment.
Technical information
- 400v 3 Phase 1,1kw motor
- Gear driven 12 speed
- Cutting capacity 32mm in steel
- Morse taper MT3
Product weight and dimensions may differ from packed dispatch measurements. Check the official documents below or contact us if a value is not listed.
Downloads
Product documents
These documents are for model JMD-45PFD-T. Check the model, voltage and production revision on your machine before using a document.
Send us the product model, voltage and serial or production reference so we can identify the correct manufacturer document.
