JET

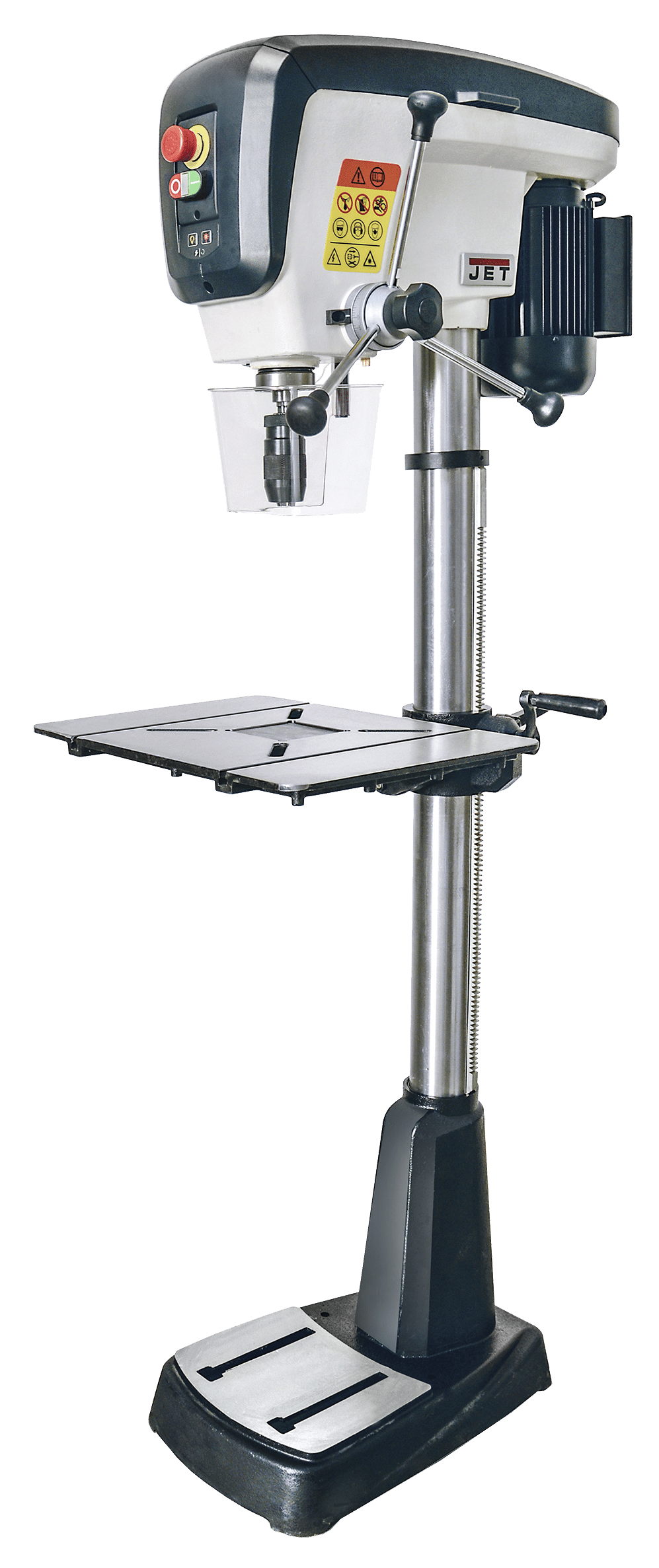

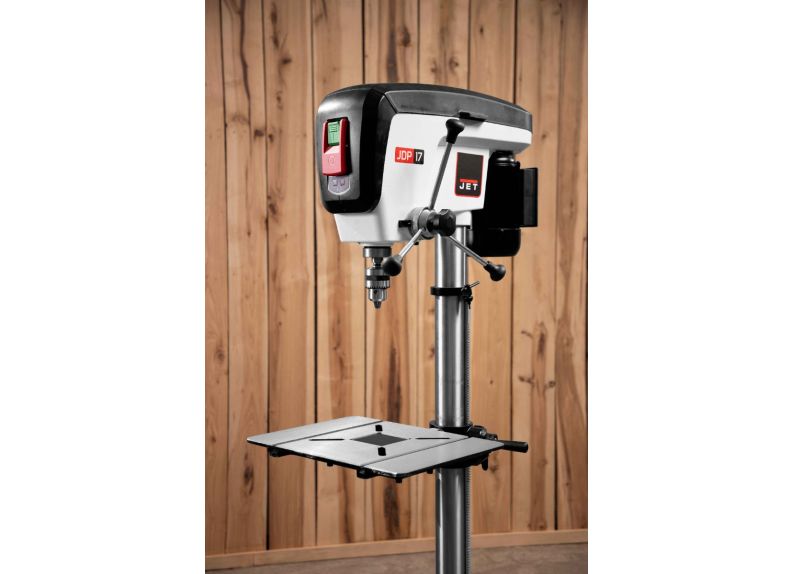

JDP-17 JET Drill Press
Model JDP-17
Selling price includes UK VAT where applicable. Any ex. VAT figure shown is for comparison; final taxes and shipping are confirmed at checkout.
Supplier stock listed
Supplier stock is updated from periodic reports, not a live feed. Availability and delivery are confirmed before dispatch.
Description
Features
Heavy-duty drill press developed specifically for wood workshops

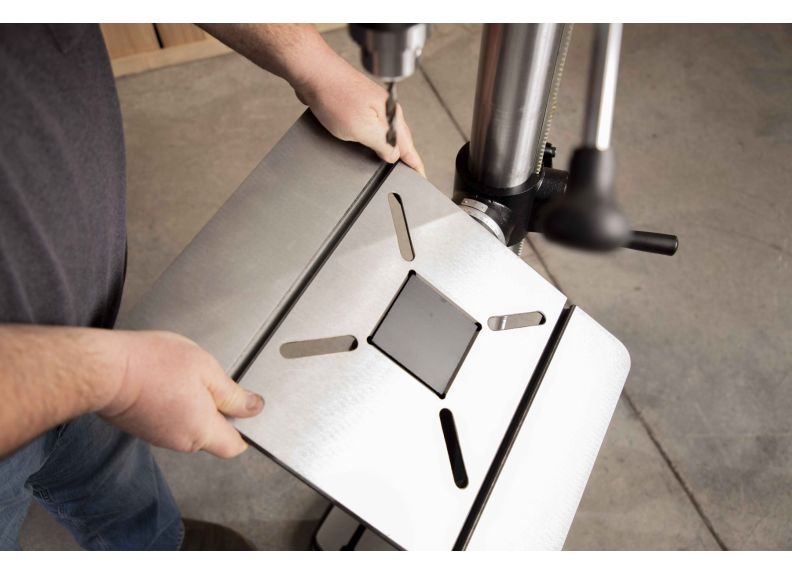

Extra-large, precision-planed work table with 2 T-slots and 4 table slots for even greater flexibility
Flat table edge designed for using clamps
Replaceable MDF table insert
127mm drill stroke with just one turn of the handwheel, for long drill holes

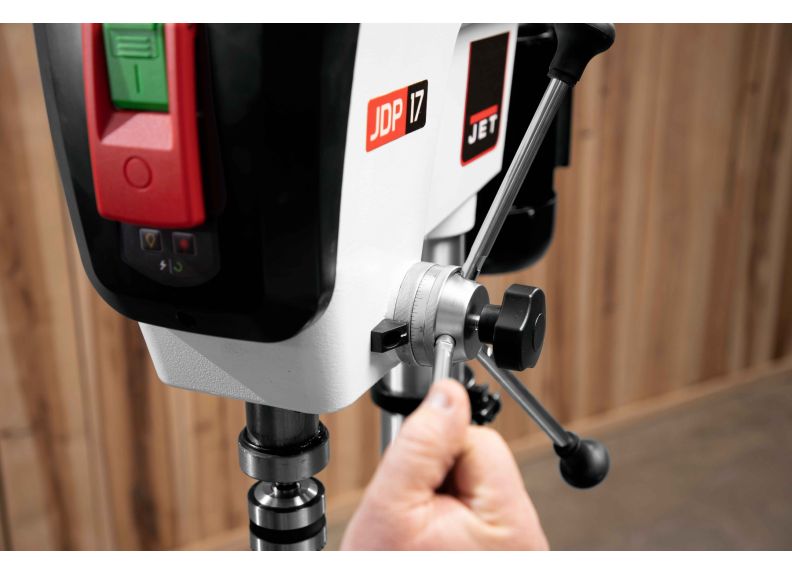

Integrated drill depth stop for precision batch tasks
Efficient 1.0kW induction motor and quiet poly-v belt drive

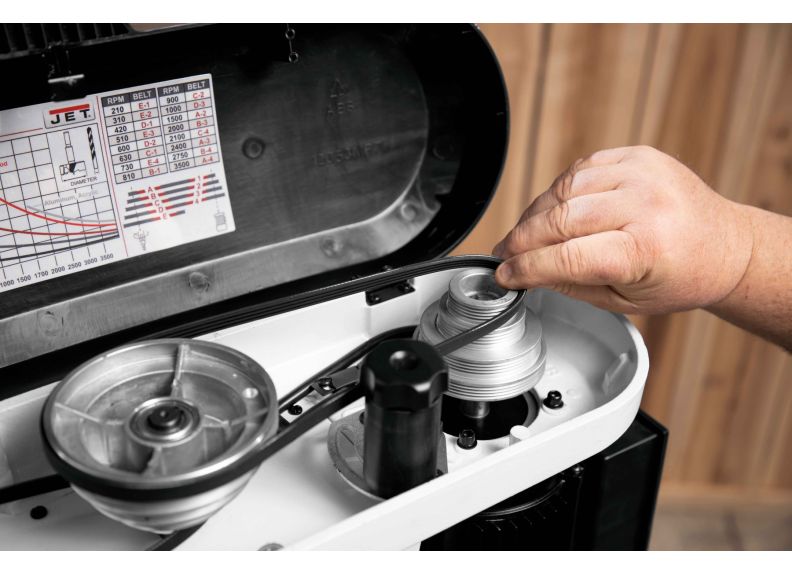

One-handed belt tensioning for fast speed changes

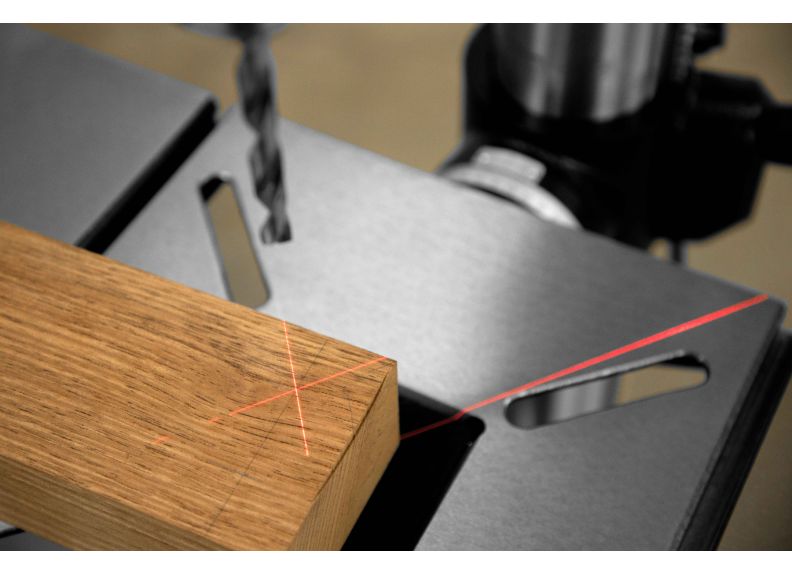

Xacta-X laser system easily identifies the drill center
Integrated long-life LED working lamp prevents shadows
Large cast iron base for high stability
Electric drill chuck protector, belt guard protection and emergency stop as standard
Delivery and support
Delivery is calculated from the combined actual shipping weight and destination. Carrier dimensions are used only where the selected service requires them. Very heavy, specialist-handling or unusual-access orders may need a confirmed freight quotation before payment.
Technical information
- Number of spindle speeds 16
- Spindle fixture MT2
- Spindle travel 127mm
- Distance spindle to column 215mm
Product weight and dimensions may differ from packed dispatch measurements. Check the official documents below or contact us if a value is not listed.
Downloads
Product documents
These documents are for model JDP-17. Check the model, voltage and production revision on your machine before using a document.
- User manualInstallation, operation and maintenance (PDF, opens in a new tab)
- Parts listPart numbers and exploded diagrams (PDF, opens in a new tab)
Send us the product model, voltage and serial or production reference so we can identify the correct manufacturer document.
Ask product supportStore pickup
Learn before first use
Set up safely Get more from the tool
Visit Learning for available manufacturer documents and product support.
