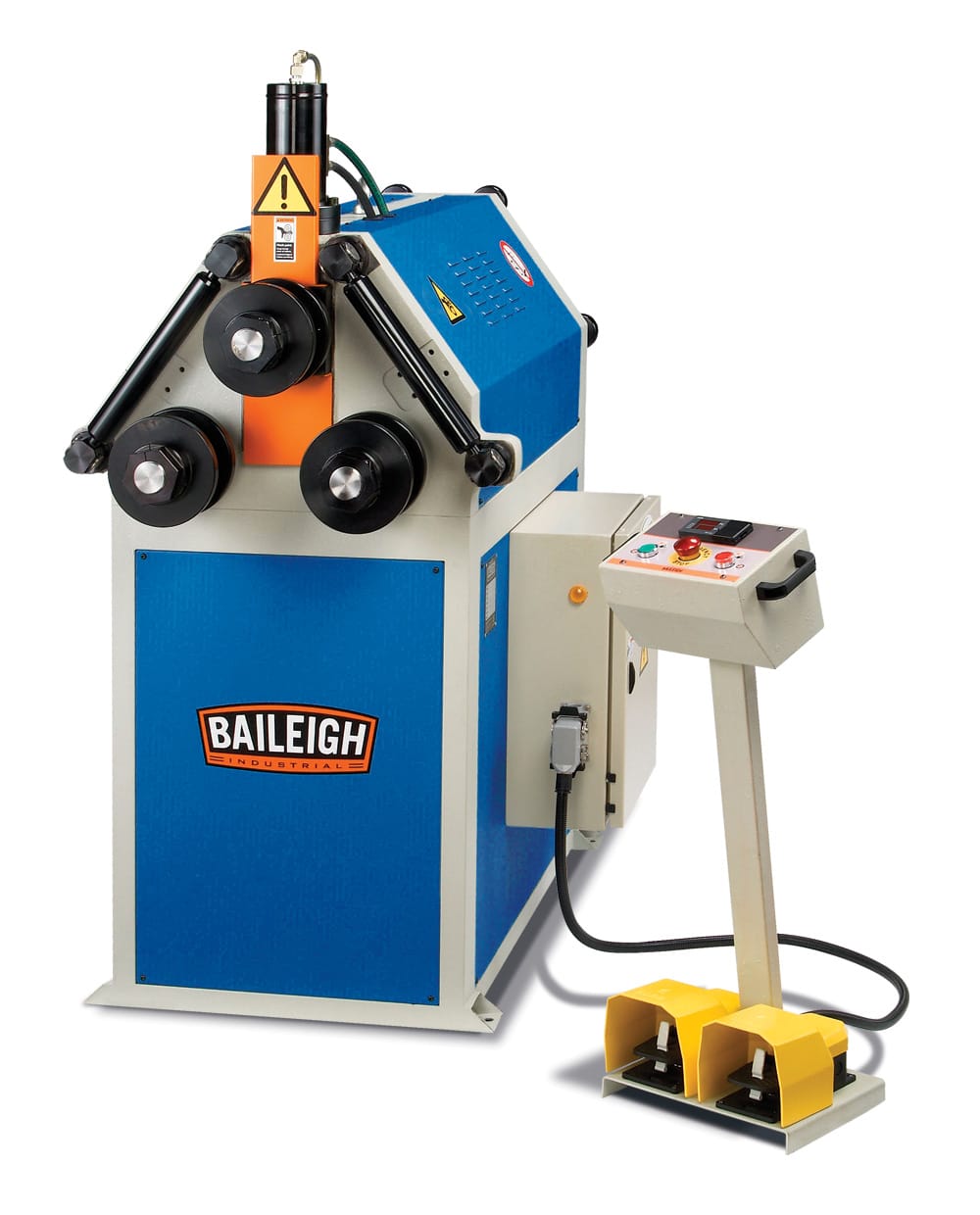

Baileigh R-H55 Hydraulic Roll Bender

The Baileigh Industrial R-H55 angle roller is perfect for bending round tube and pipe, sections, bar, and angle iron into large sweeping radii.

This machine uses three driven rolls that are powered by a 400 volt, three phase, 5hp motor with a direct drive transmission that offers enough power to roll 4” round tubing with a .083 wall thickness.

In order to achieve capacity like this, the R-H55 is built from a heavy steel plate that is mounted on a fully welded steel housing. Like all section benders from Baileigh Industrial, this one can be operated in the vertical mode for smaller diameters and laid on its back for horizontal bending when larger diameters are required.

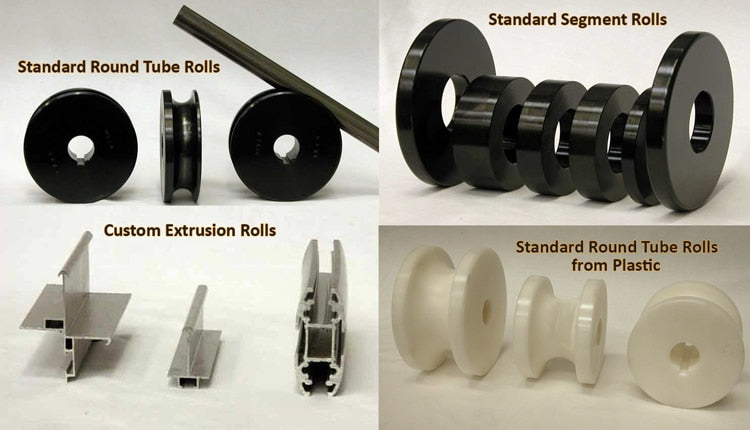

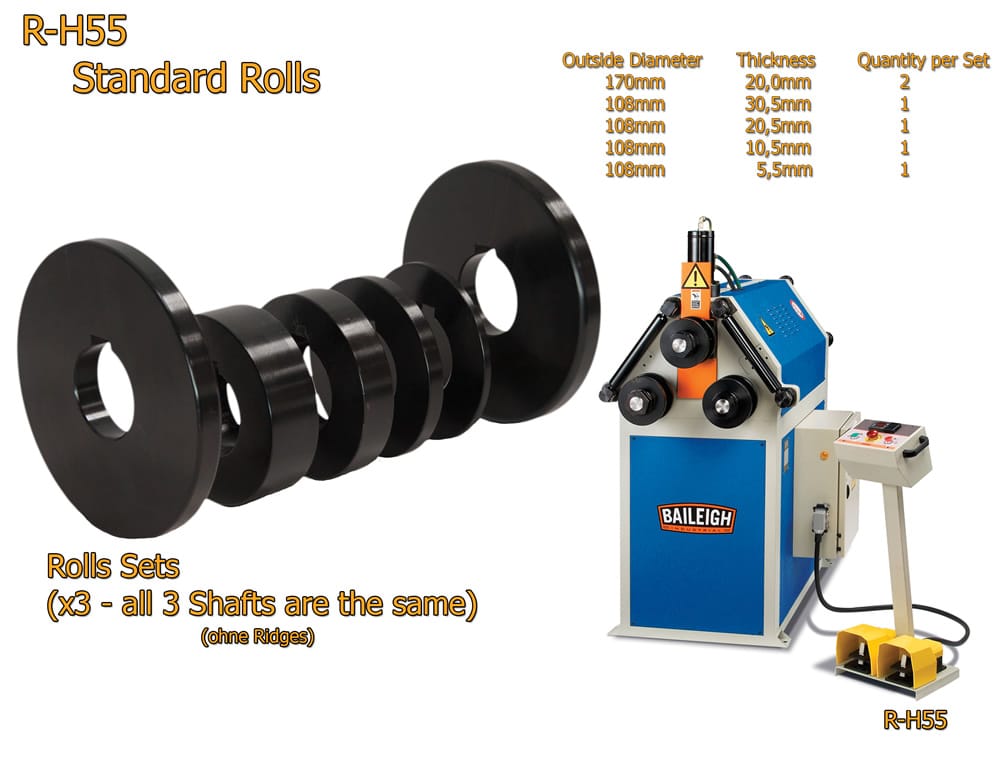

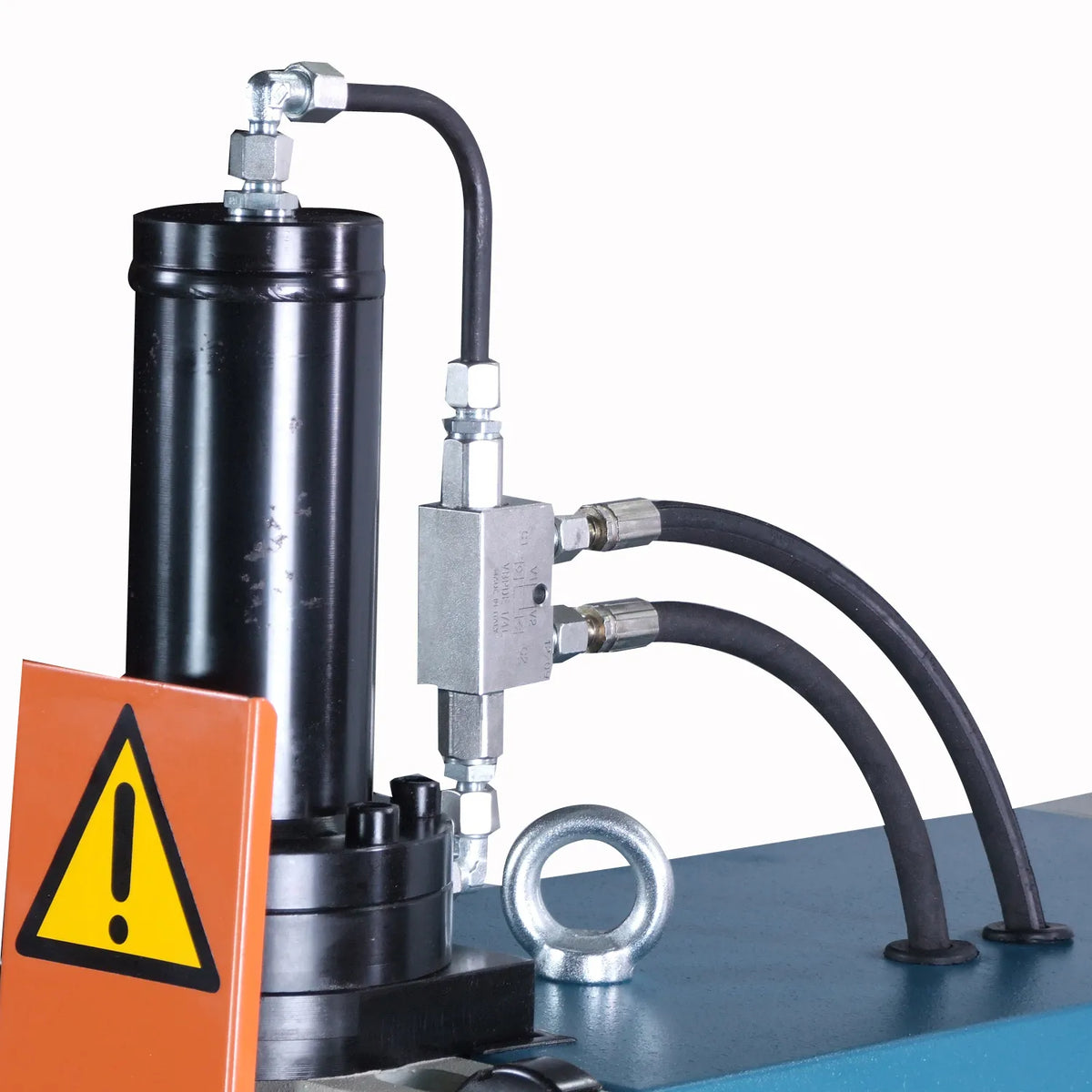

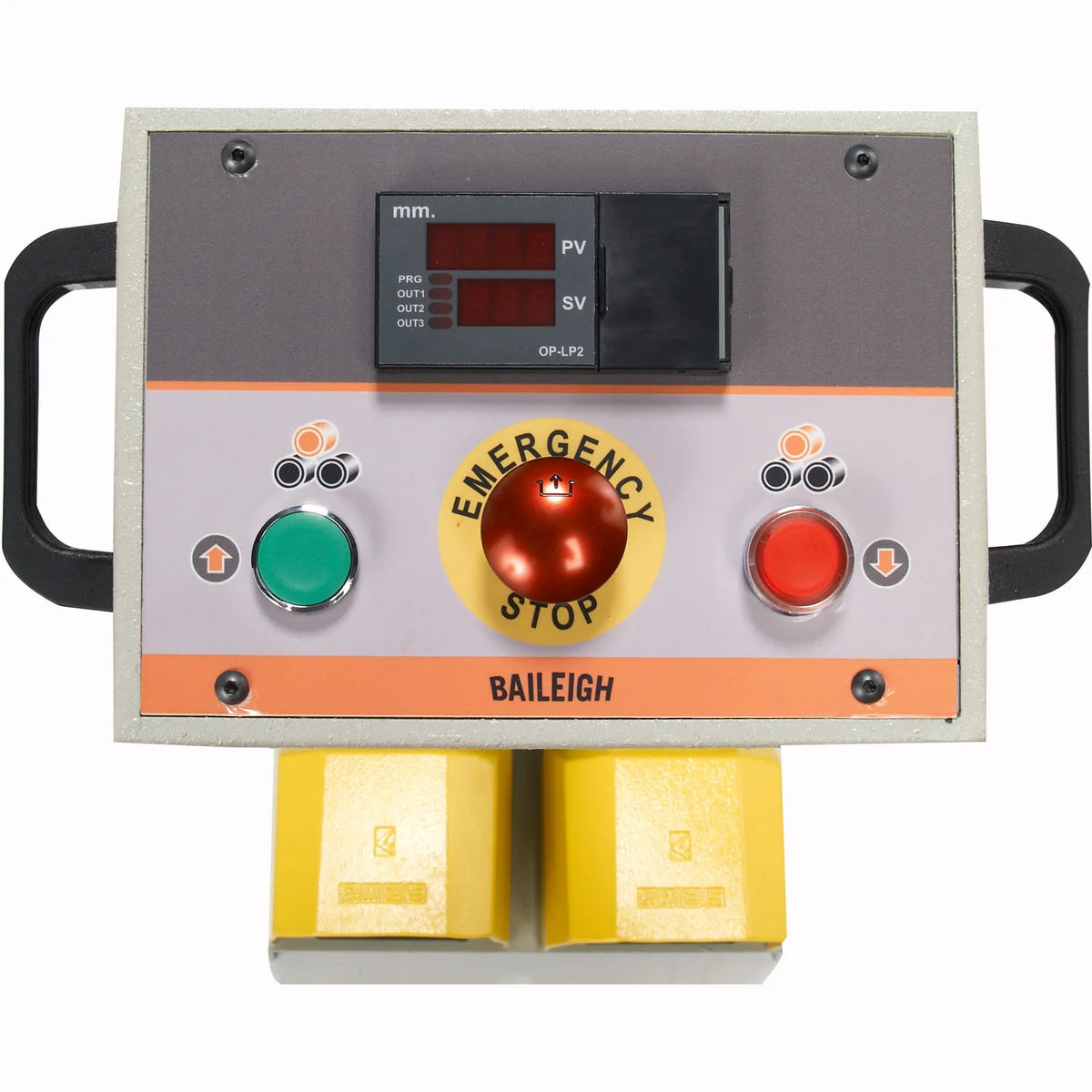

The R-H55 angle roller has industrial-grade hydraulics for positioning the top roll. The DRO feature on this machine makes for easy repeatability, which is very important for those multiple piece production runs. The R-H55 comes standard with a set of segment rolls, lateral roll guides for coiling, and an easy-to-use control station.

Baileigh Industrial machines always offer great value for the investment, using only the highest quality components on the market.
