Baileigh
Baileigh CS-275EU Manual Coldsaw
SKU 2001920
Selling price includes UK VAT where applicable. Any ex. VAT figure shown is for comparison; final taxes and shipping are confirmed at checkout.
Supplier stock listed
Supplier stock is updated from periodic reports, not a live feed. Availability and delivery are confirmed before dispatch.
Description
Do you do light metal fabrication or chassis building? If so the CS-275EU could be the right saw for you. This 220 volt, 50hz, single phase circular coldsaw features an 11” (279mm) blade that turns at 54rpm and has a 3.25” (83mm) round capacity at 90°, big enough for just about any chassis project.

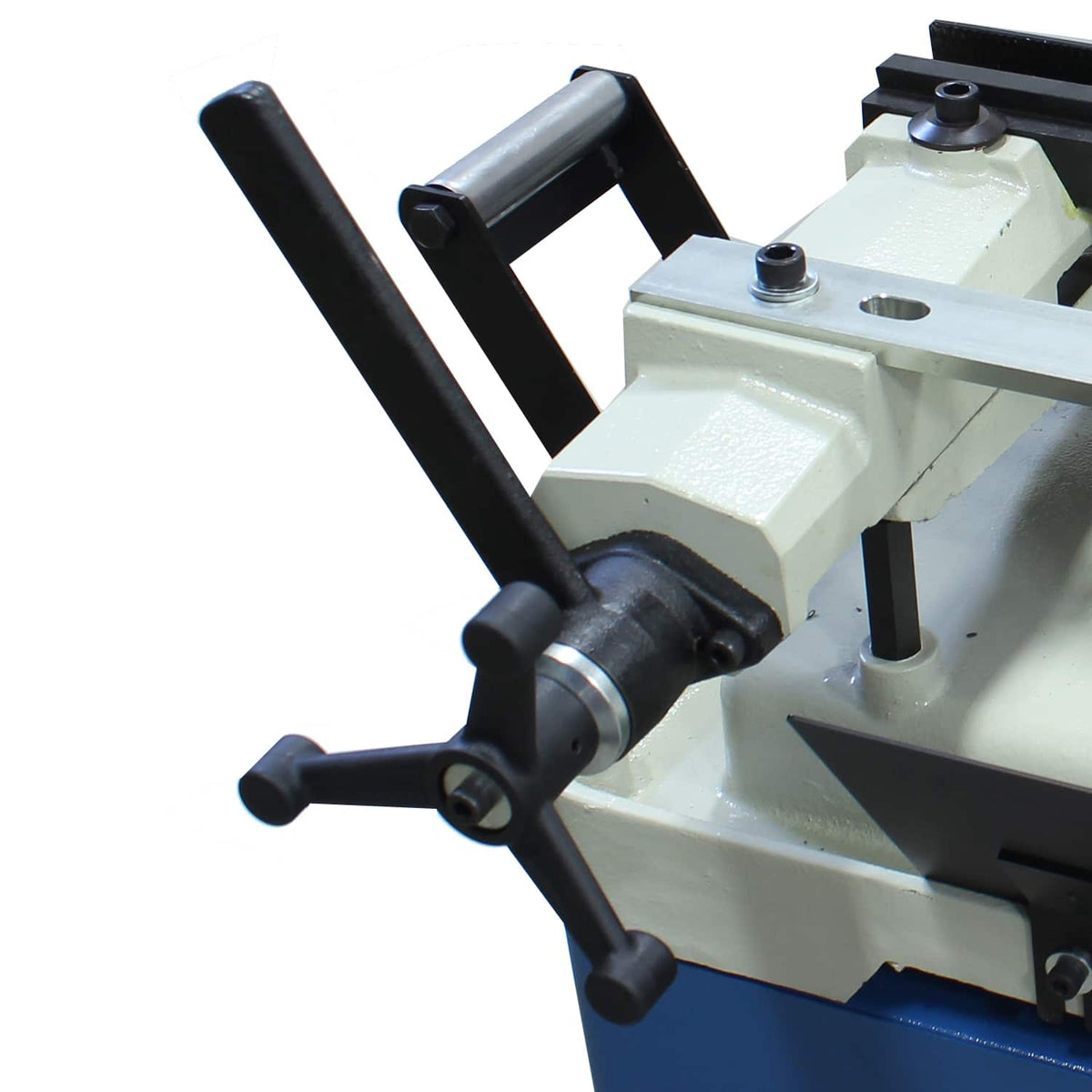

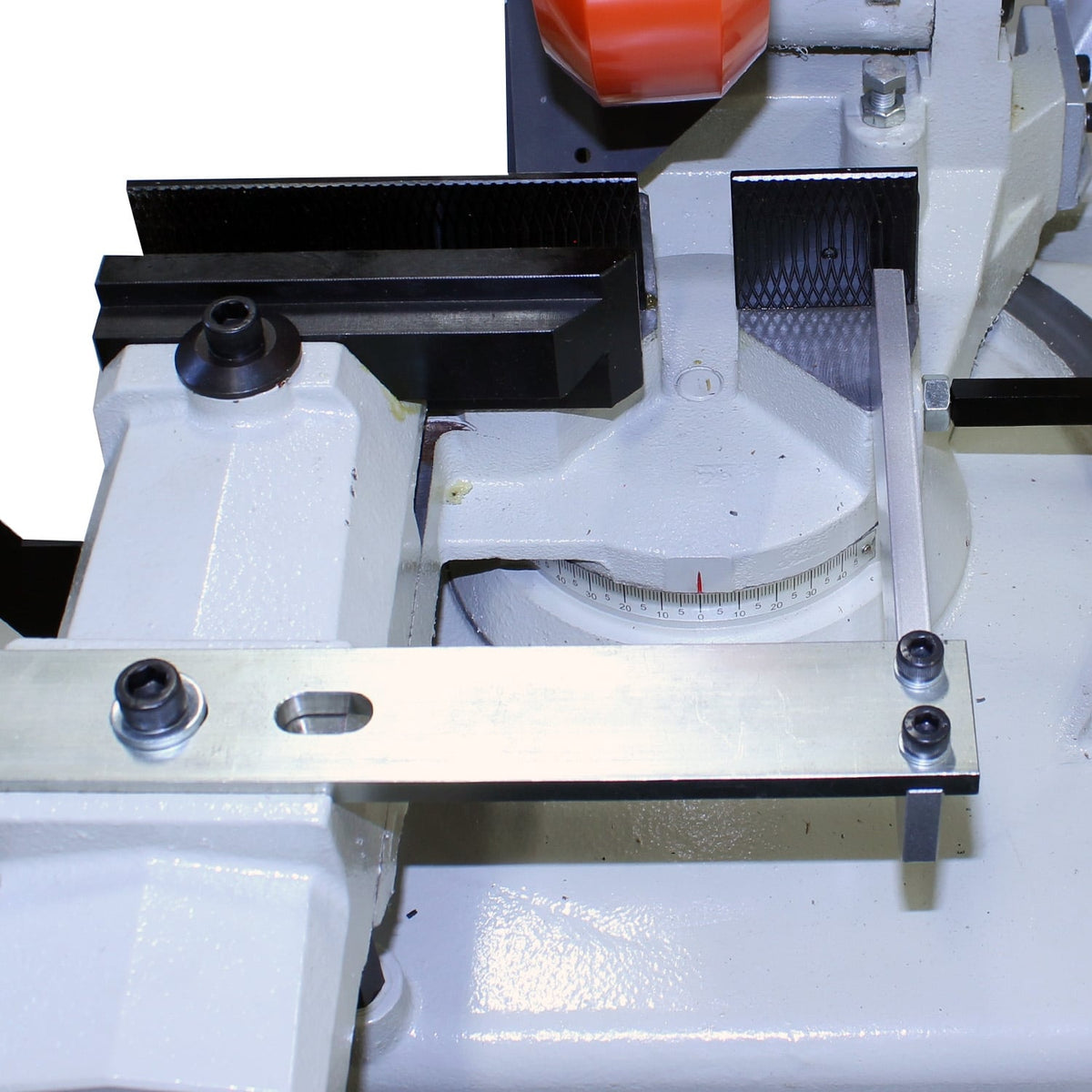

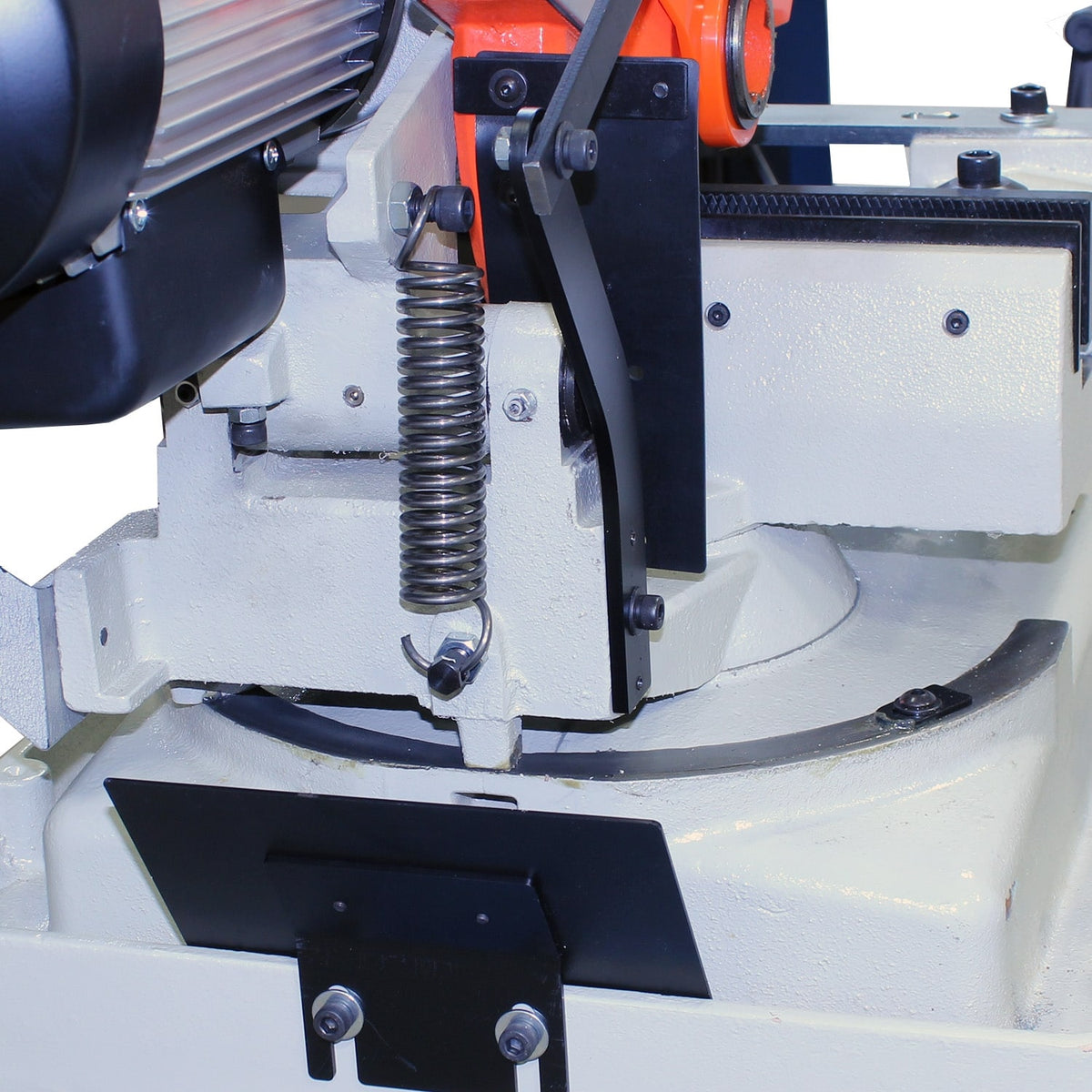

The CS-275EU is built to provide years of service, with its fully cast iron head; robust 1.5hp (1.1kw) motor, and heavy-duty vice. The vice uses a cam-lock device that allows for fast material loading and unloading, as well a second support on the opposite side of the blade to help ensure perfect cuts. The head of the CS-275EU also swivels to 45° in both the left and right directions, making this the perfect saw for various shapes and materials like pipe, angle iron, solid bar, and channel materials.

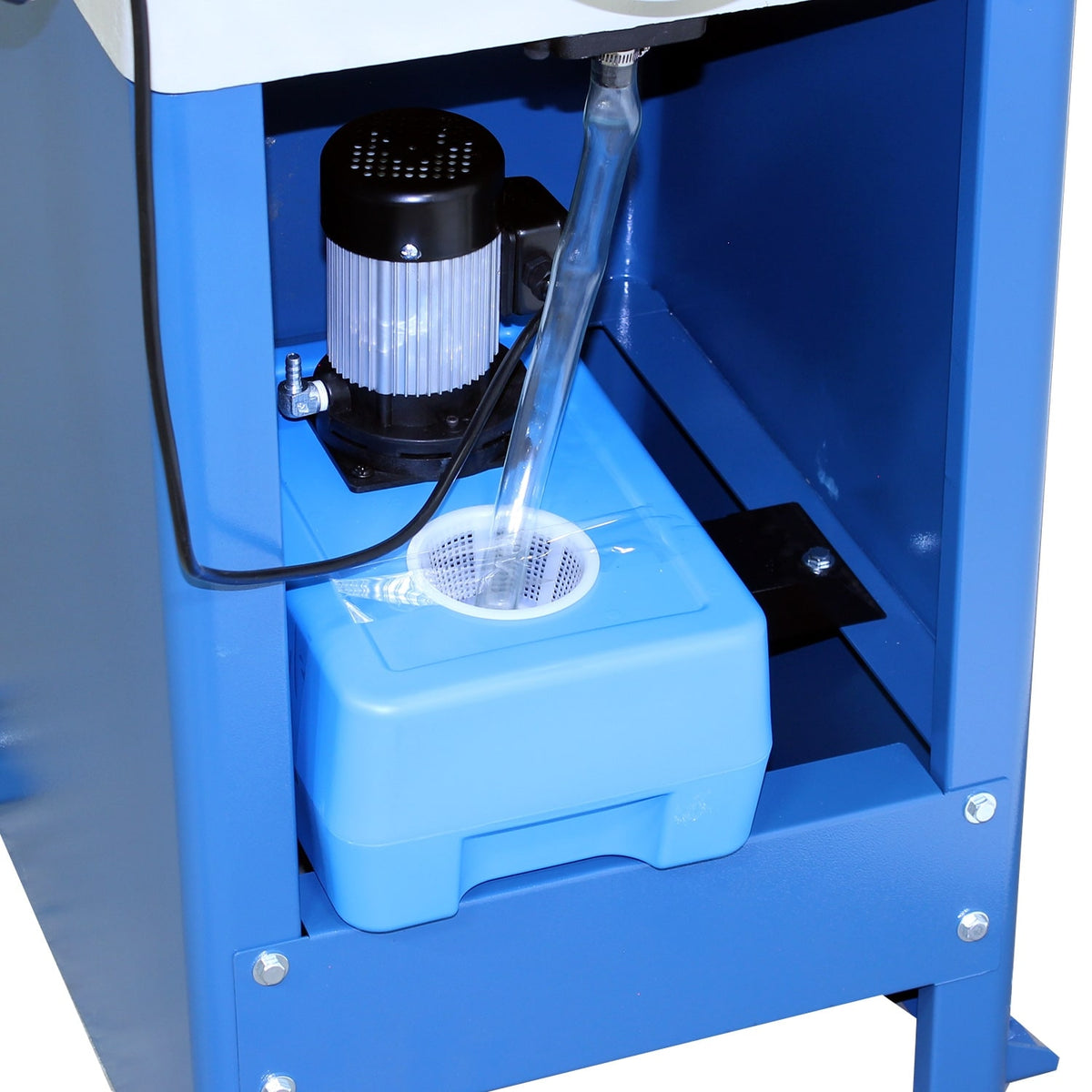

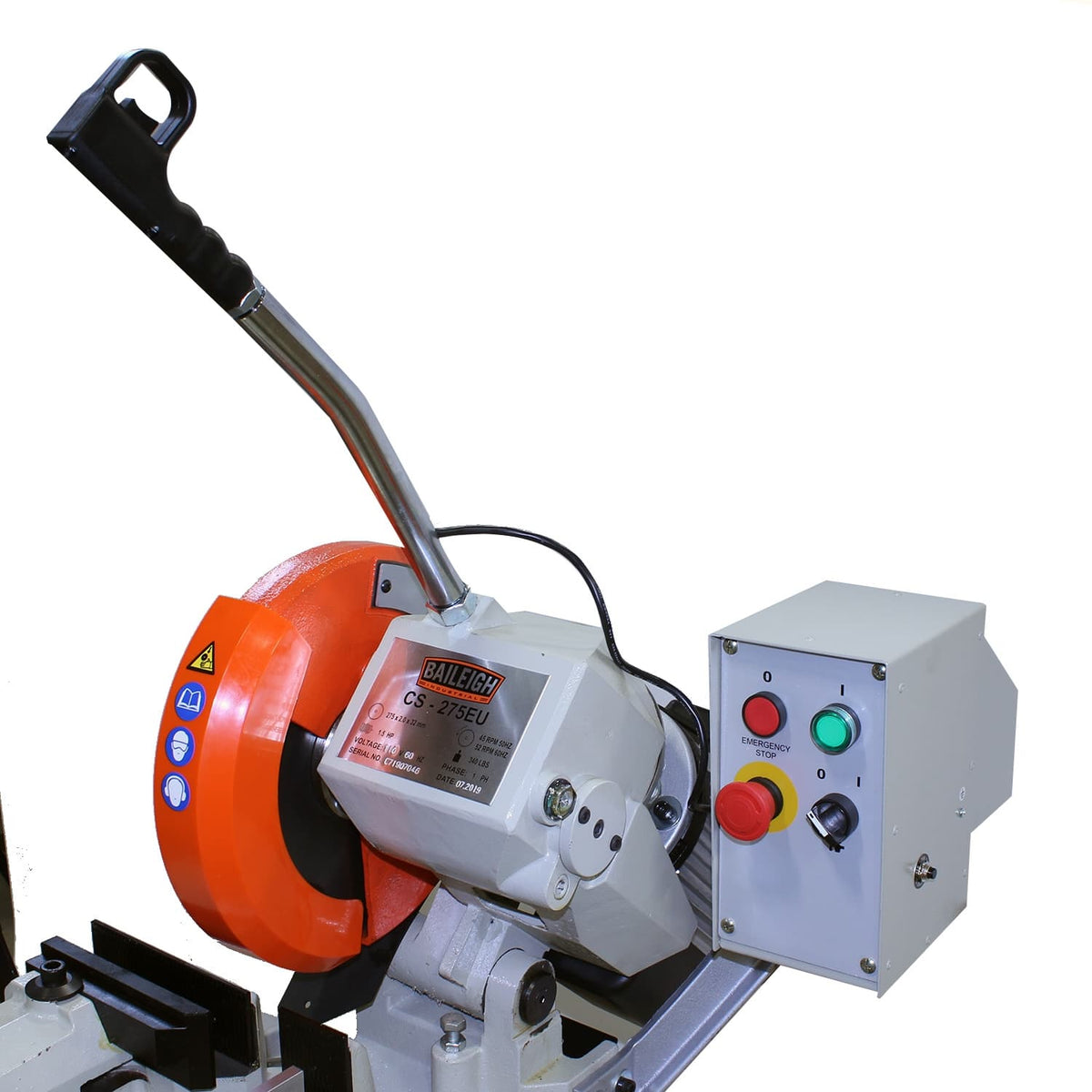

Like all the EU style coldsaws from Baileigh Industrial the CS-275EU comes standard with a sturdy stand, heavy cast base, simple to use control panel, flood coolant system and material stop rod.
Delivery and support
Delivery is calculated from the combined actual shipping weight and destination. Carrier dimensions are used only where the selected service requires them. Very heavy, specialist-handling or unusual-access orders may need a confirmed freight quotation before payment.
Technical information
- 85mm round capacity
- 40mm solid capacity
- 0°-45° mitre l, 0°-45° mitre r
Product weight and dimensions may differ from packed dispatch measurements. Check the official documents below or contact us if a value is not listed.
