Baileigh

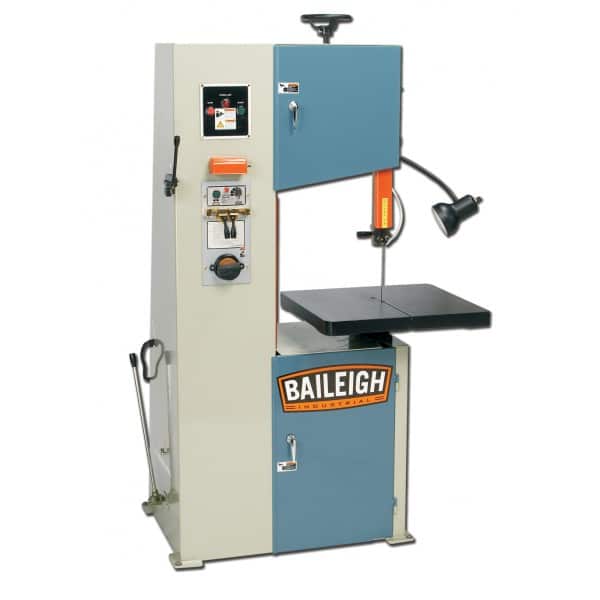

Baileigh BSV-16 Vertical Bandsaw
SKU 2002166
Selling price includes UK VAT where applicable. Any ex. VAT figure shown is for comparison; final taxes and shipping are confirmed at checkout.
Supplier stock listed
Supplier stock is updated from periodic reports, not a live feed. Availability and delivery are confirmed before dispatch.
Description
The BSV-16 vertical bandsaw from Baileigh Industrial is the perfect all around vertical bandsaw for any fabrication shop. It has many of the same features found on saws for a lot more money. Although economical, the BSV-16 is built solid with a fully welded frame and industrial grade components. The BSV-16 will serve any shop or factory faithfully for years to come.

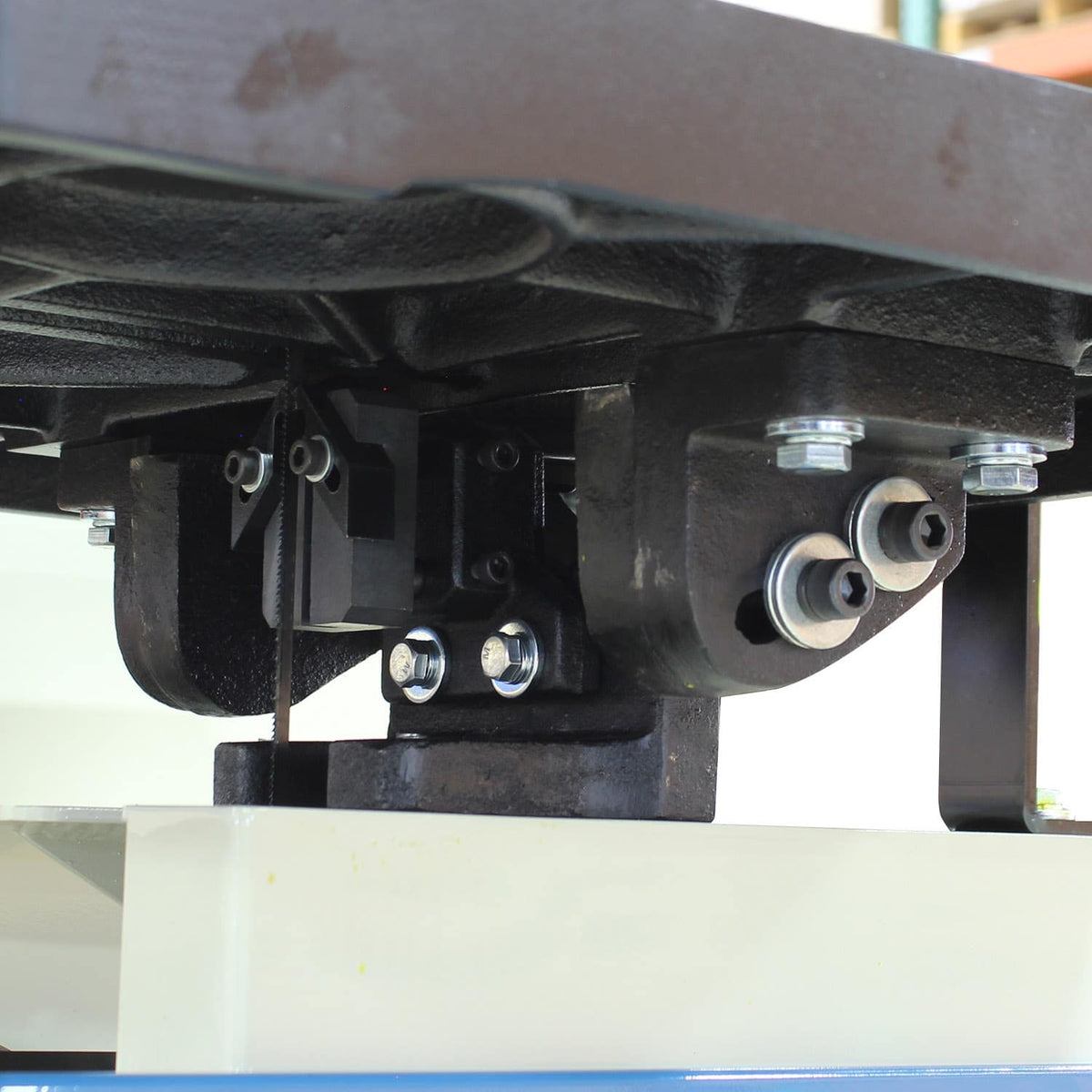

The BSV-16 features a large 386mm throat depth and a 388mm material opening. The large size of the opening will accommodate almost any project. The heavy-duty 610mm - 559mm table also pivots 10° front to back and 15° left to right. A convenient scale is located on the bottom side of the table for quick adjustments when needed.

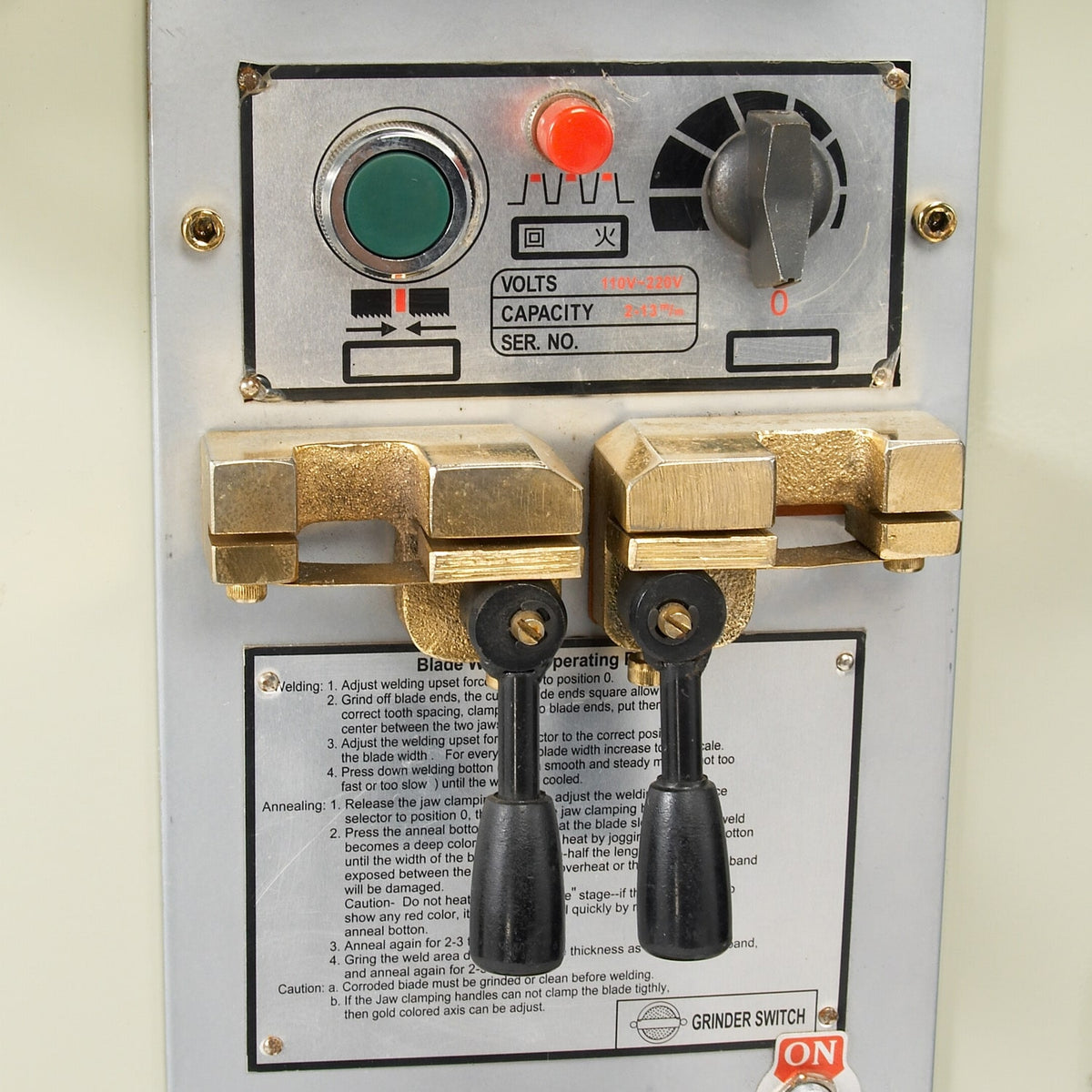

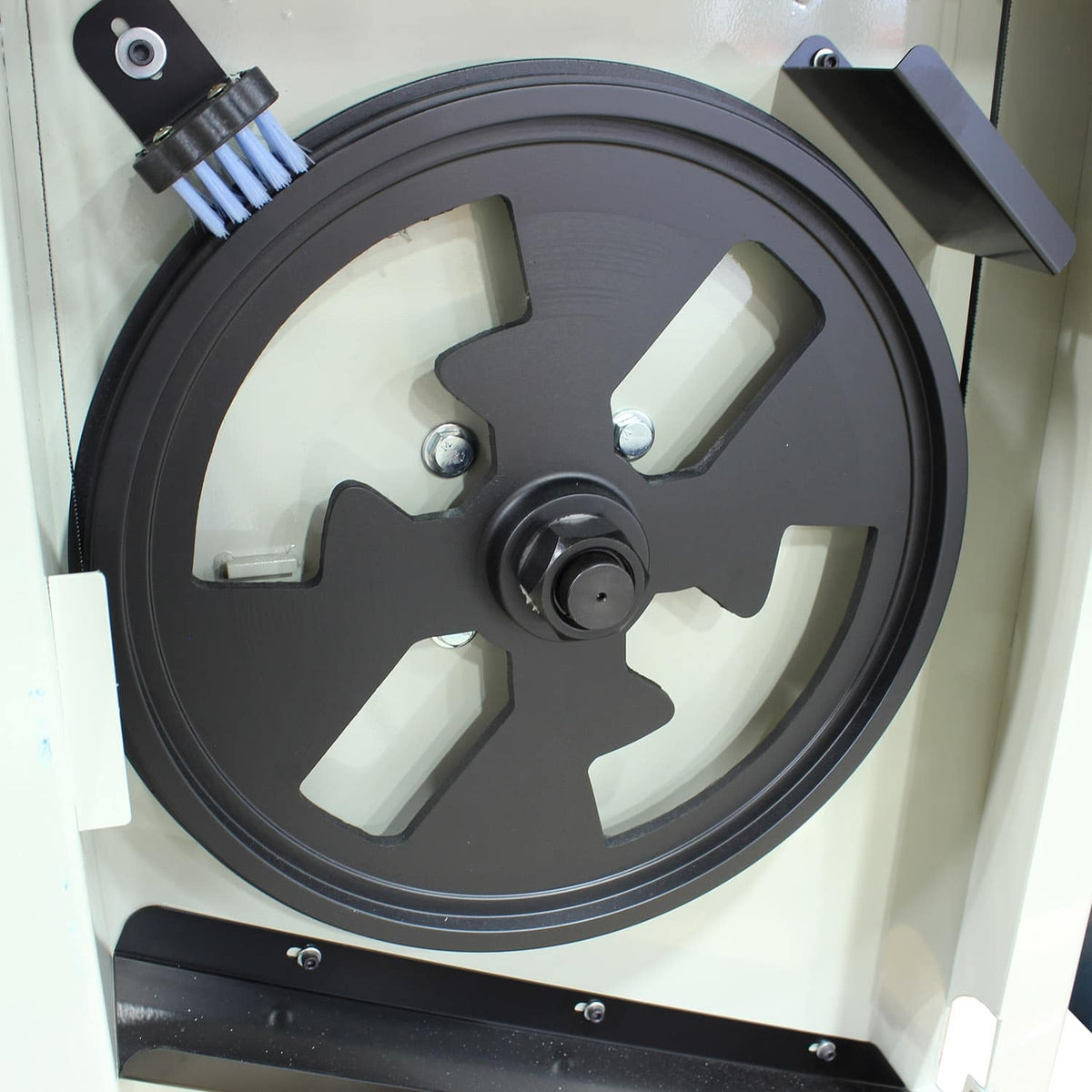

The BSV-16 uses a .6kw motor to turn the blade and has 4 operating speeds ranging from 62rpm to 249rpm. The BSV-16 operates on 220 volt, 50hz, single phase power and includes a blade welder for when you need to get to the middle of a cut on a project. The designers of the BSV-16 wanted to accommodate most of the popular blade widths, so they made the blade wheel accept blades ranging from 1/4” for the most intricate cuts, to 16mm for straight cut offs.
Delivery and support
Delivery is calculated from the combined actual shipping weight and destination. Carrier dimensions are used only where the selected service requires them. Very heavy, specialist-handling or unusual-access orders may need a confirmed freight quotation before payment.
Technical information
- 6mm - 16mm blade width
- 388mm maximum thickness
- 386mm throat depth
Product weight and dimensions may differ from packed dispatch measurements. Check the official documents below or contact us if a value is not listed.
