Baileigh

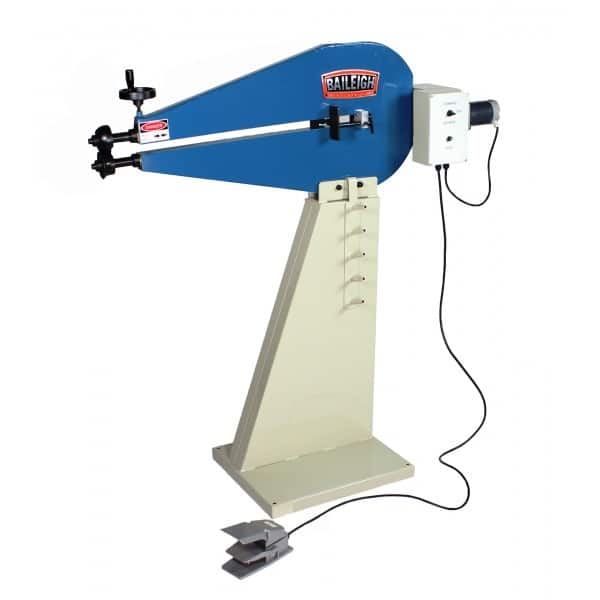

Baileigh BR-18E-24 Bead Roller
SKU 2002183
Selling price includes UK VAT where applicable. Any ex. VAT figure shown is for comparison; final taxes and shipping are confirmed at checkout.
Supplier stock listed
Supplier stock is updated from periodic reports, not a live feed. Availability and delivery are confirmed before dispatch.
Description

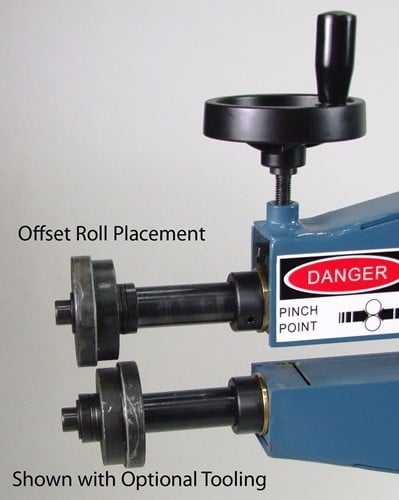

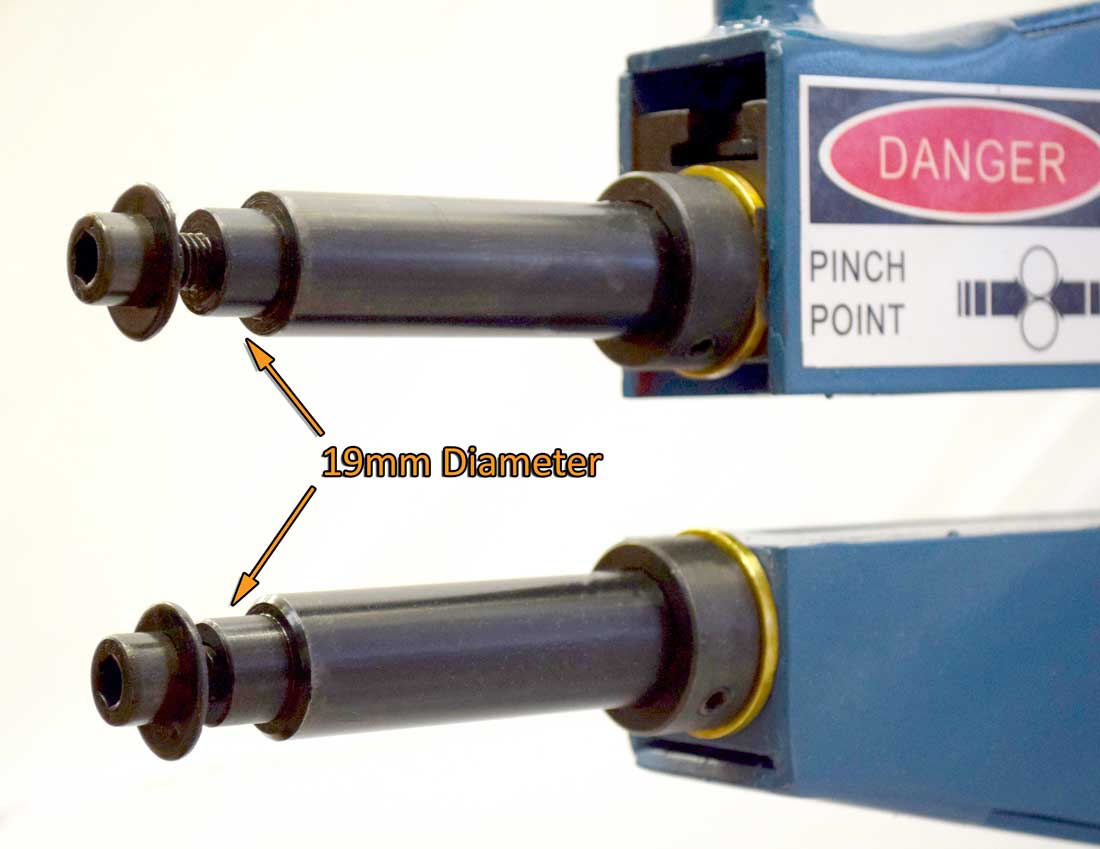

The BR-18E-24 power bead roll has a capacity of 1.25mm mild steel and 1.6mm aluminum. Powered by 220V, 50hz this variable speed bead roller is perfect for most beading applications. The 610mm throat depth is perfect for putting beads in 2 metre x 2.5 metre sheets of sheet metal but is compact enough to make even the most intricate beading patterns. The frame is made from heavy plate steel that is fully welded for further rigidity. The bead depth is adjustable via the top roll. Baileigh Industrial offers many sets of tooling for the BR-18E-24 bead roll and the shaft diameter is ¾” and will fit most commercially available roll sets.

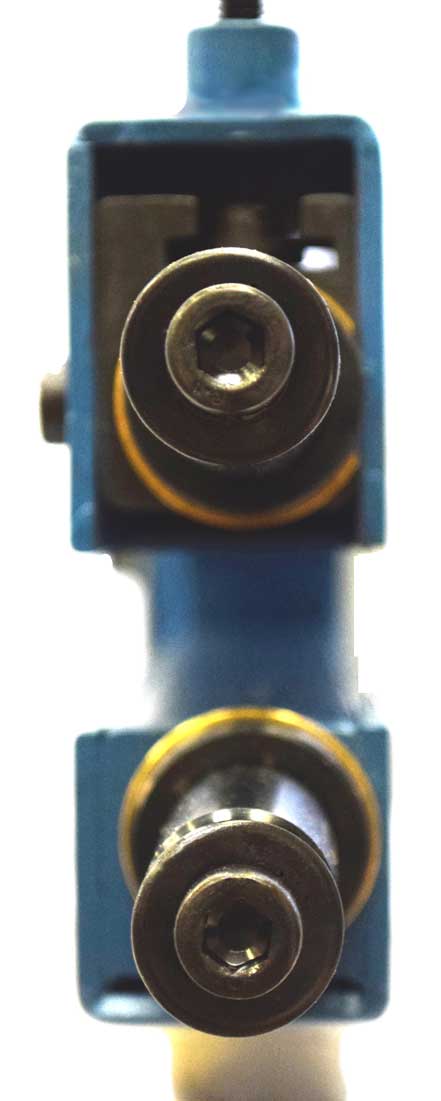

All moving parts on the BR-18E-24 have bronze bushings for long life. A powerful 220 volt, 50hz industrial grade motor and gearbox drive the rolls forward or reverse. Control of this power bead roll is by a variable speed foot pedal that allows the operator to have both hands free to work the material.
Like most Baileigh Industrial bead rolls, the BR-18E-24 comes with a depth stop for perfectly straight beads, and a heavily constructed floor stand that includes a die rack. This bead roll is built to last.
The BR-18E-24 is almost always in stock for fast deliveries. Contact Baileigh now for additional details.

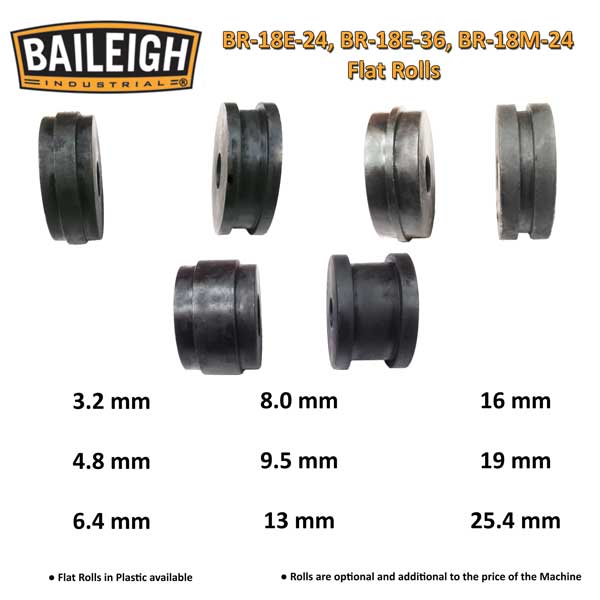

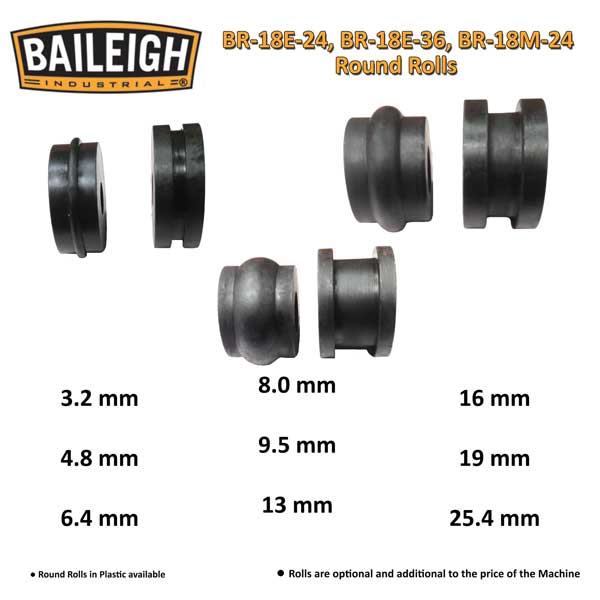

There is 1 set of spoiler rolls that come with this machine. Any other rolls are optional and extra to the cost of the machine.
Delivery and support
Delivery is calculated from the combined actual shipping weight and destination. Carrier dimensions are used only where the selected service requires them. Very heavy, specialist-handling or unusual-access orders may need a confirmed freight quotation before payment.
Technical information
- 1.25mm mild steel capacity
- 610mm throat depth
- Stand and depth stop included
Product weight and dimensions may differ from packed dispatch measurements. Check the official documents below or contact us if a value is not listed.
Downloads
Product documents
No exact official documents are currently attached to this product. Do not use a manual for a similar model or voltage.
Send us the product model, voltage and serial or production reference so we can identify the correct manufacturer document.
