Baileigh AP-3R Arbor Press
Selling price includes UK VAT where applicable. Any ex. VAT figure shown is for comparison; final taxes and shipping are confirmed at checkout.
Supplier stock listed
Supplier stock is updated from periodic reports, not a live feed. Availability and delivery are confirmed before dispatch.
Description

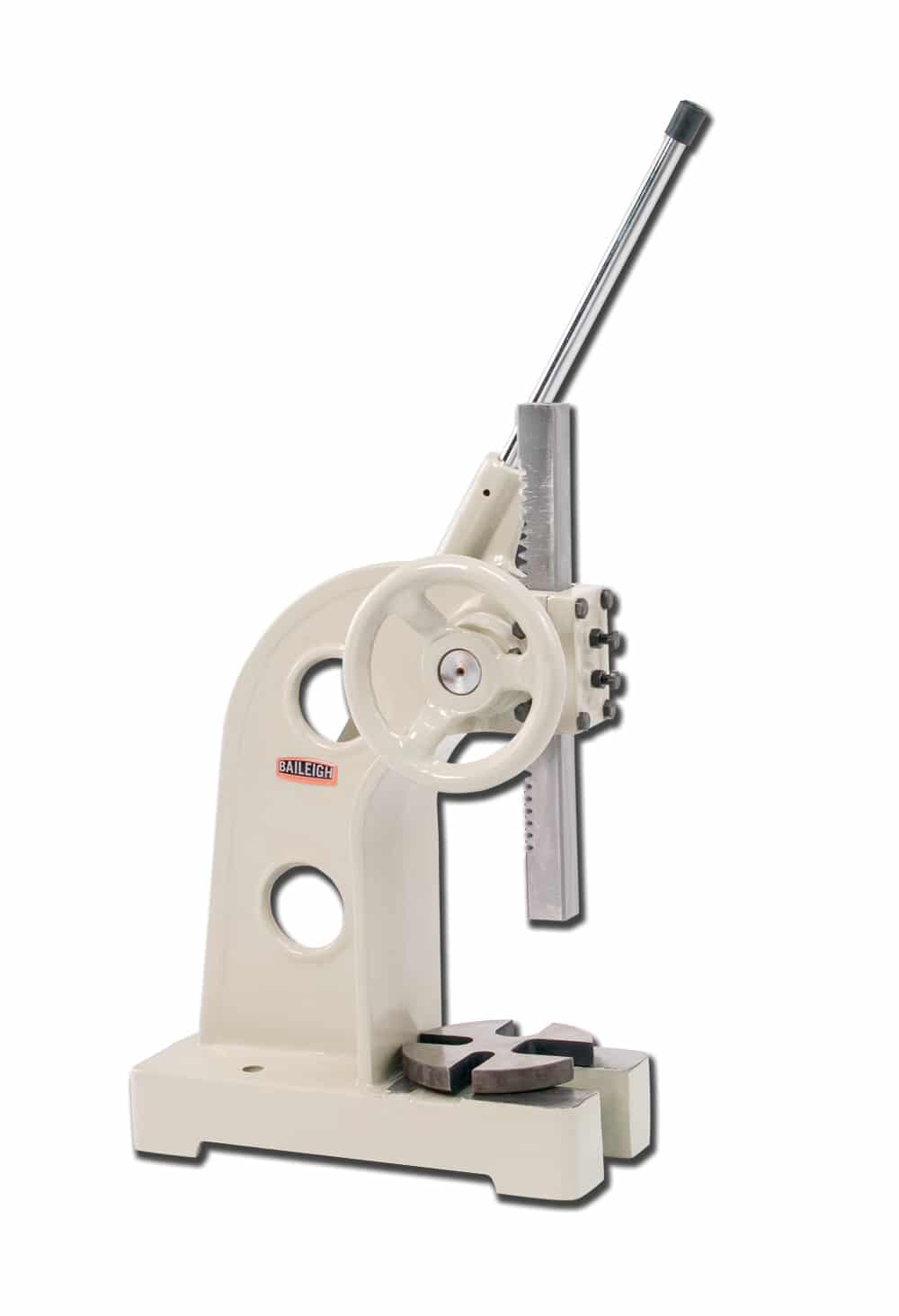

The AP-3R is a 3 ton arbor press with a heavy-duty cast iron frame.

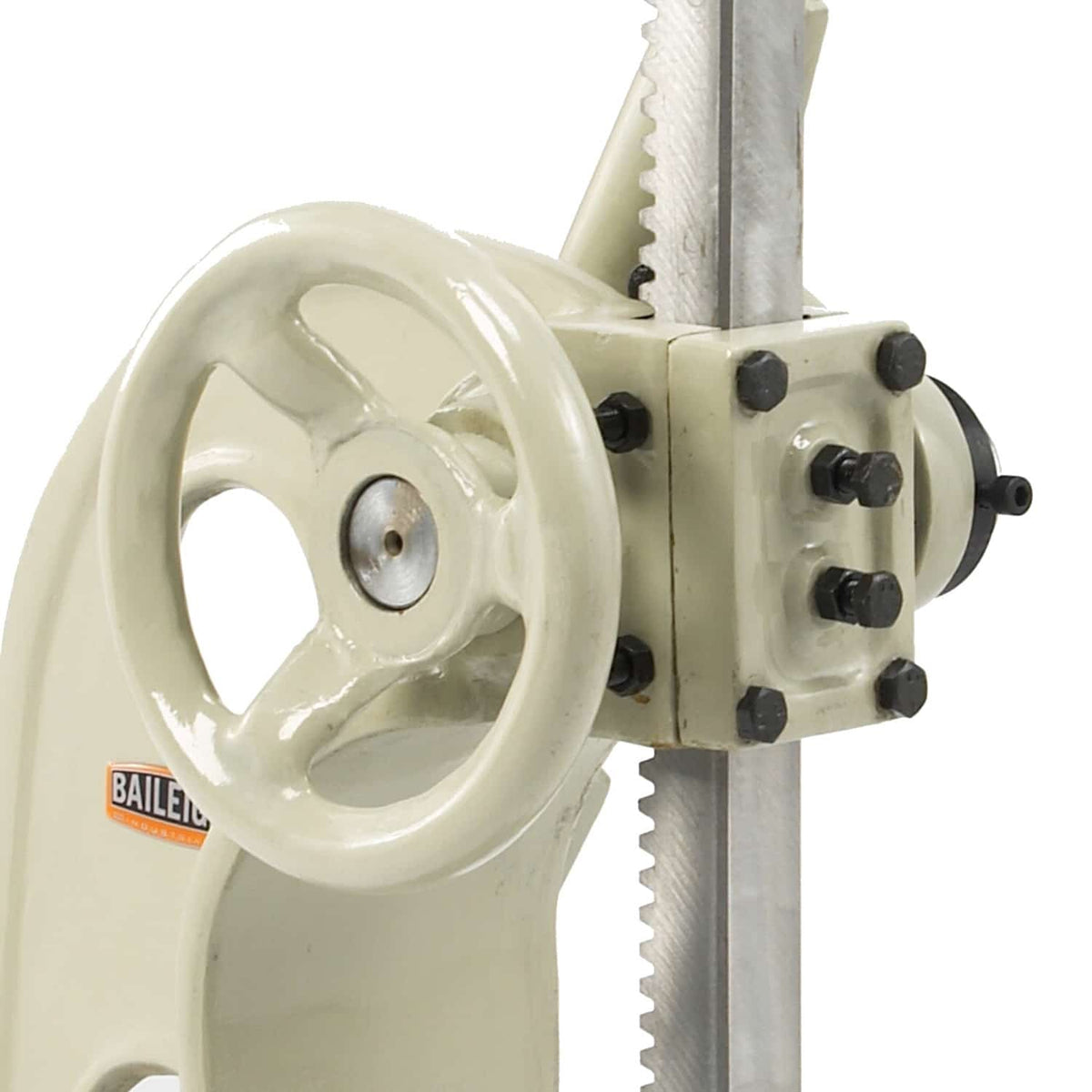

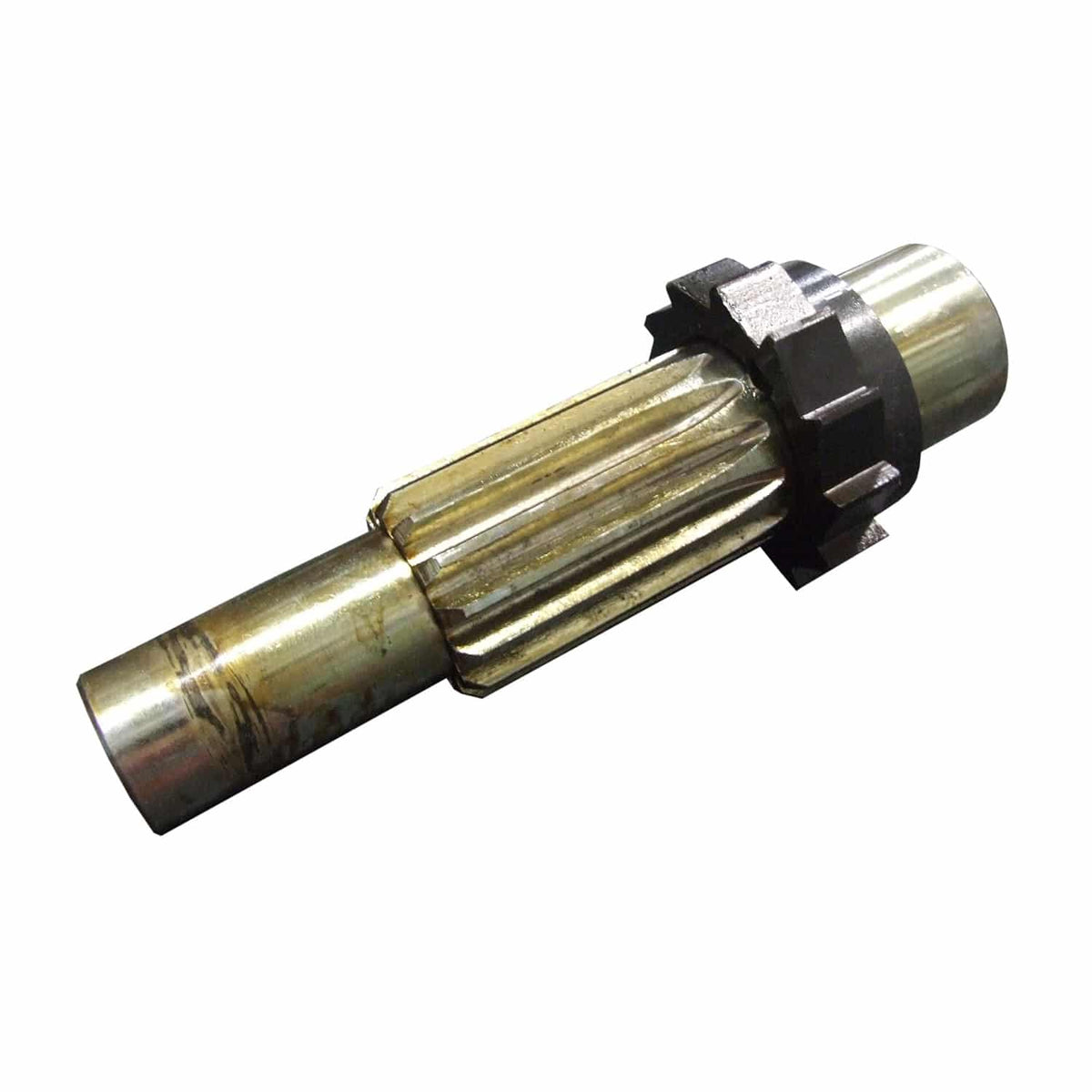

This sheet metal forming arbor press machine is a ratchet leverage machine that allows the operator to get the most leverage out of each pull of the handle using a ratchet actuator.

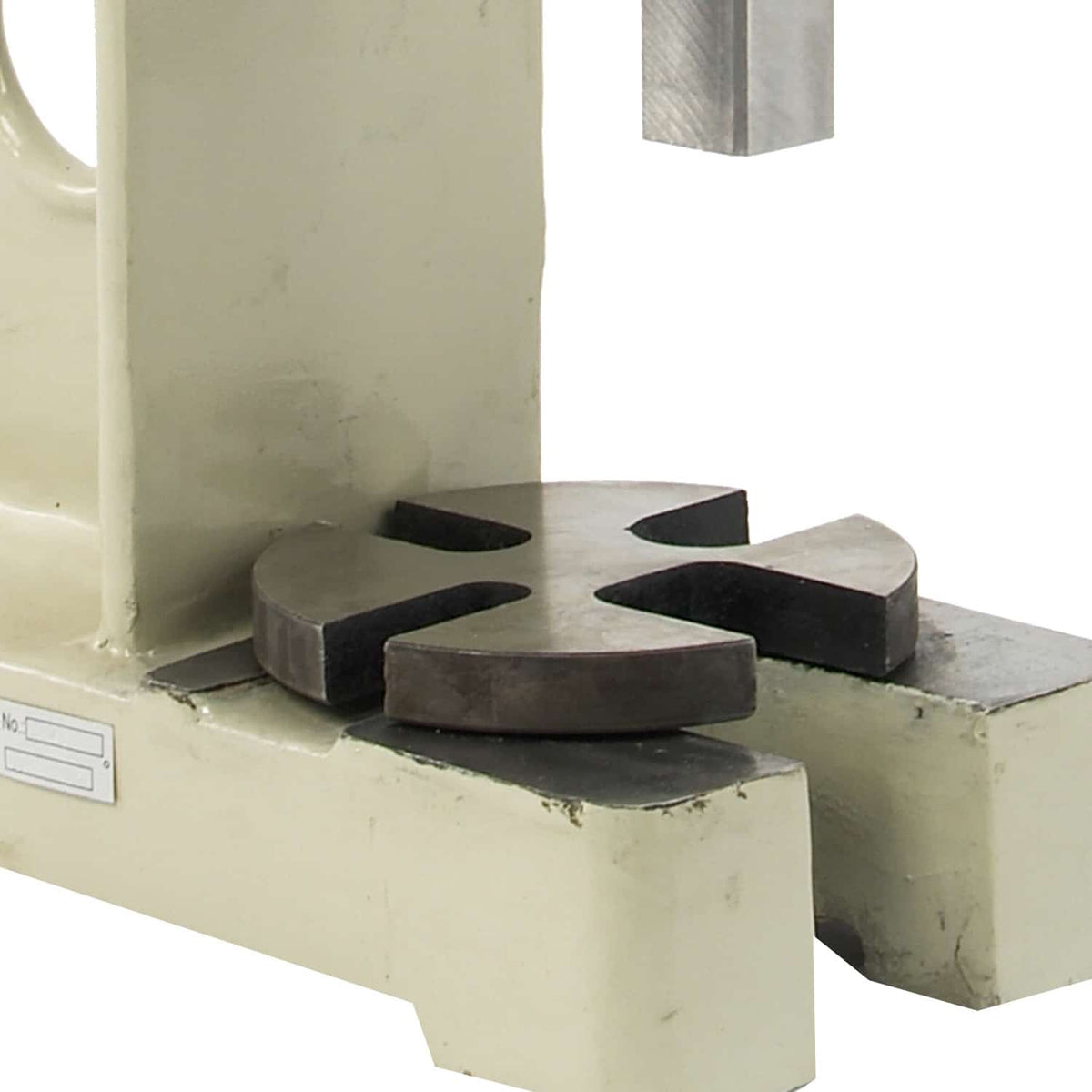

There is a machined 4 position bottom plate that is perfectly perpendicular to the ram that has the proper opening for most broaches to push through.

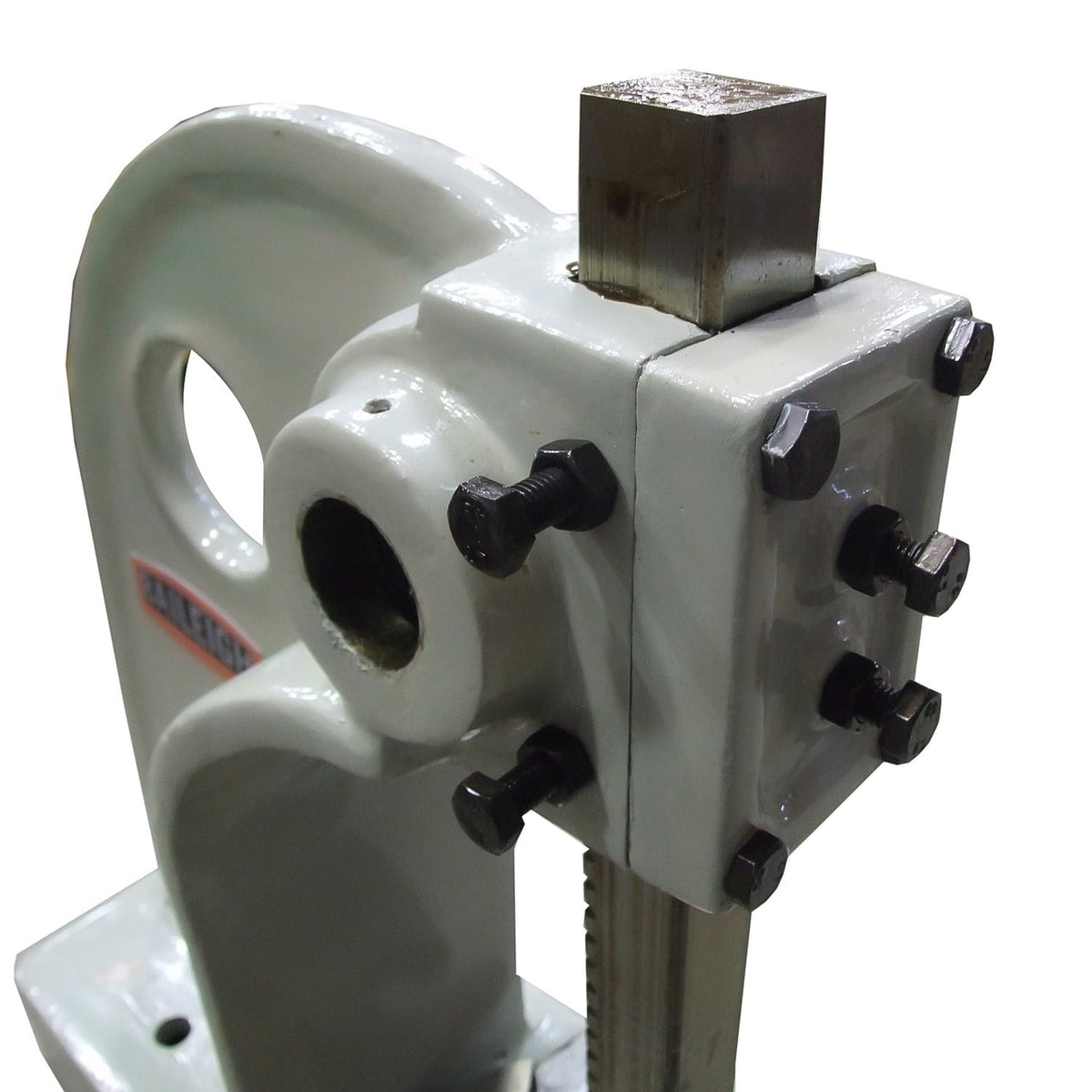

This arbor press has a solid, case hardened ram for perfect presses every time and offers years of profitable use at full capacity. All Baileigh arbor presses can be bench or pedestal mounted. The AP-3R arbor press has a 5 inch throat opening and can handle material up to 11 inches tall.
Delivery and support
Delivery is calculated from the combined actual shipping weight and destination. Carrier dimensions are used only where the selected service requires them. Very heavy, specialist-handling or unusual-access orders may need a confirmed freight quotation before payment.
Technical information
- Manually operated
- 2.7 metric tons of pressure
Product weight and dimensions may differ from packed dispatch measurements. Check the official documents below or contact us if a value is not listed.
Downloads
Product documents
These documents are for model AP-3R. Check the model, voltage and production revision on your machine before using a document.
- User manualInstallation, operation and maintenance (PDF, opens in a new tab)
- Parts listPart numbers and exploded diagrams (PDF, opens in a new tab)
